Micolorprint
High Speed Bottle Tumbler Printer
High Speed Bottle Tumbler Printer
Couldn't load pickup availability
Print bottles, cones, and tumblers with stunning clarity using UV rotary technology. Boost production with our high-speed cylinder UV printer. Perfect for factories. Supports color, white, and varnish. Print on any shape bottle—fast and easy. Reliable performance. Eco-friendly UV inks. Automatic loading & precision output.
Contact us
Contact us
- Description
- Specification
- Shipping Method and Delivery Time

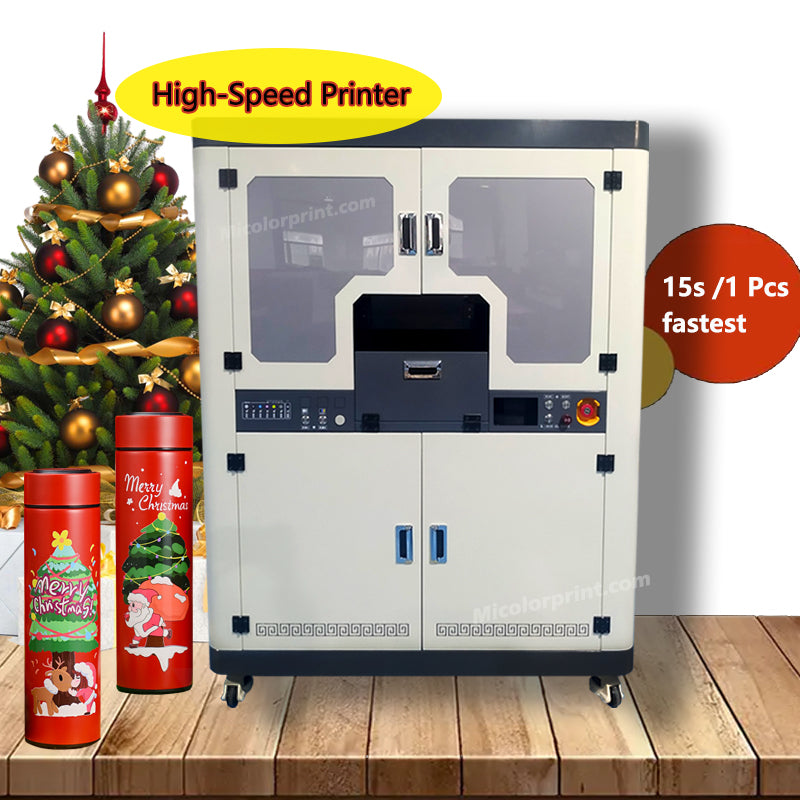

High-Speed Rotary UV Cylinder Printer | For Tumblers, Cones, Water Bottles & Perfume Bottles
Revolutionize Your Bottle Printing Process
Engineered for precision and efficiency, this High-Speed Rotary UV Printer is specially designed for printing on cylindrical and tapered items such as tumblers, stainless steel bottles, plastic water bottles, glass containers, and perfume bottles. Whether you're customizing one piece or producing in bulk, this machine delivers outstanding performance and print quality.
✅ Key Features:
-
High-Speed Rotary Printing
The advanced rotary system allows for a printing speed of 30s-70s per bottle, dramatically increasing productivity. -
UV Direct-to-Substrate Printing
Supports CMYK + White + Varnish printing for vibrant, full-color, and high-adhesion graphics that resist wear and fading. -
Versatile Object Compatibility
Accommodates cylindrical and tapered items from 30mm to 270mm in diameter, with automatic height adjustments for different shapes. -
User-Friendly Operation
Intuitive interface with smart control system makes setup and operation quick and easy—even for first-time users. -
Eco-Friendly UV Inks
Low-odor, environmentally friendly UV-curable inks suitable for printing on metal, glass, plastic, ceramic, and more.
📦 Ideal For:
-
Custom gift manufacturers
-
Personalized drinkware businesses
-
Cosmetic/perfume packaging
-
Promotional branding companies
-
OEM production facilities
📐 Technical Specifications:
-
Max Print Length: 20 mm- 400 mm
-
Supported Materials: Glass, metal, stainless steel, plastic, ceramic
-
Ink System: UV-curable inks with white and varnish options
-
Control System: Industrial PC with professional printing software
-
Connectivity: USB / Ethernet
🚀 Take Your Custom Printing to the Next Level
Say goodbye to stickers and screen printing—embrace the future of direct-to-object UV printing. Faster, cleaner, more vibrant, and incredibly durable, this High-Speed Rotary UV Printer empowers your business to stand out in a competitive market.
📩 Contact us today to learn more or request a sample print!
| Product Specifications | |
|---|---|
| Model | MC-HS High Speed Bottle Tumbler Printer |
| Print Head | Ricoh G5i / I1600/ GH2220 |
| Print Diameter | 30mm ~ 270mm |
| Heads Quantity | 2 ~ 6 PCS |
| Print Length | 20mm ~ 400mm |
| Ink Type | Eco-friendly ink |
| Print Speed | 15s ~ 60s / Piece |
| Ink System | White ink circulation system |
| Resolution | 600 ~ 2800 DPI |
| Curing System | LED UV light |
| Angle Difference | 0° ~ 8° |
| Color Scheme | CMYK + LC + LM + White + Varnish (Optional) |
| Adapt to Product | Cylinder, Cone |
| RIP Software | RIPRINT software |

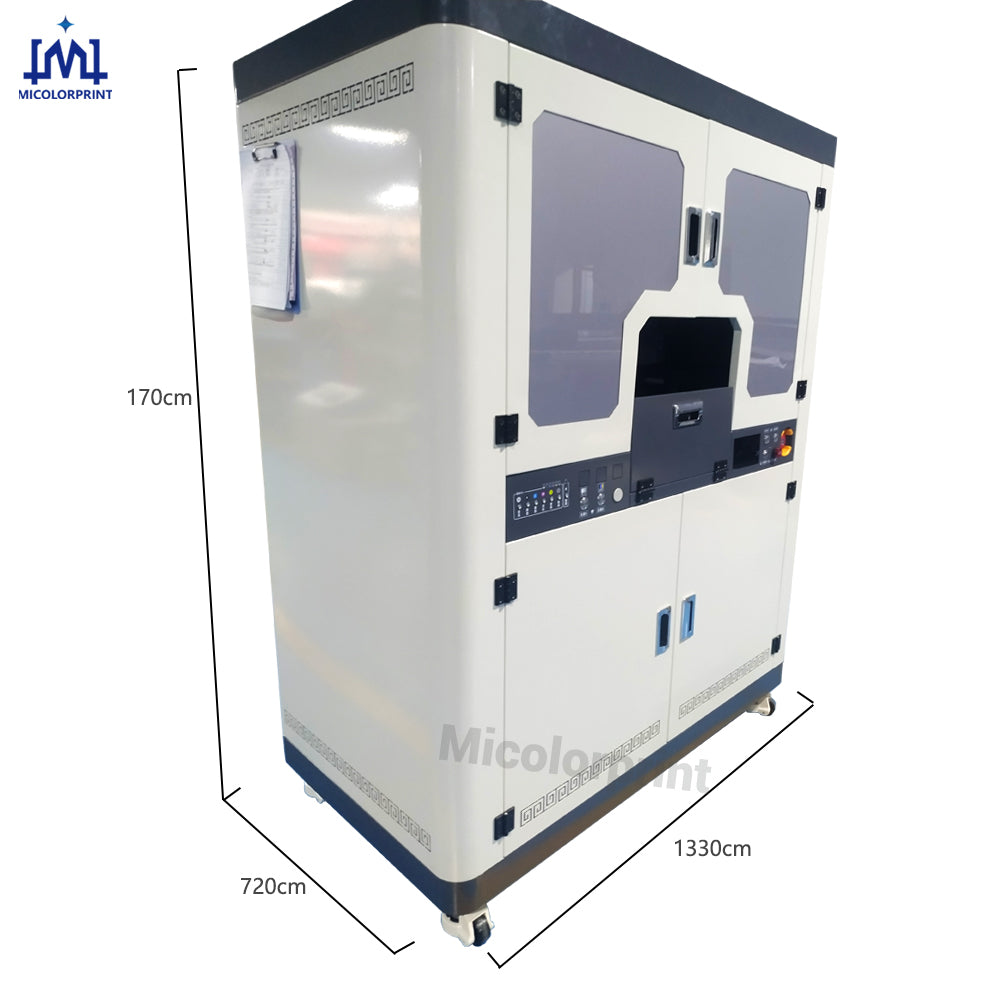

| Machine Size | 750 x 1330 x 1700 mm |
| Weight | 330 KG |
When you purchase the machine, the mode of transportation we use is door-to-door shipping (double clearance and tax included, only for countries that support double clearance and tax included by sea). For countries that do not accept door-to-door shipping with double clearance and tax included, it can only be shipped to the port by sea. Customers are responsible for customs clearance in their own country and pick up the goods to the unloading location.
